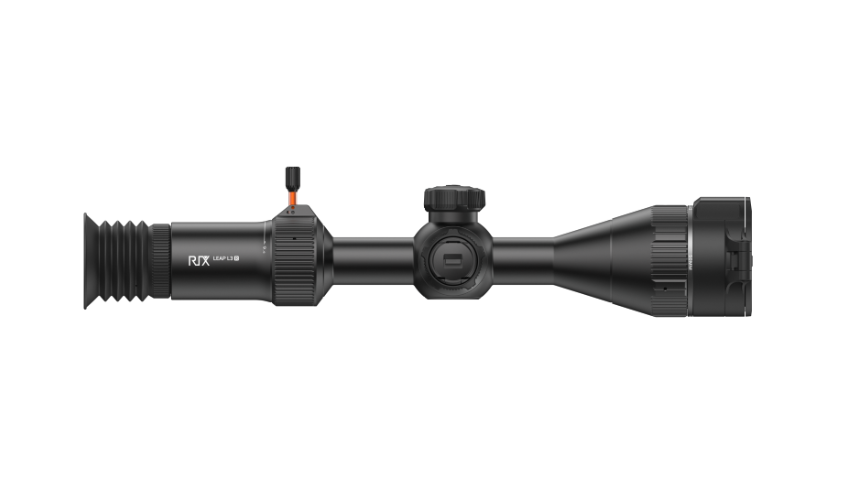

The Rix Leap L3R is the best combination in a tube style thermal that has a rangefinder capable of 500 yard plus consistent shots for the price.
BUILT-IN LENS LRF & BALLISTIC CALCULATOR
The LEAP L3R/L6R’s laser rangefinder is seamlessly integrated into the lens system, perfectly aligning the laser and optical axes for pinpoint accuracy out to 1,312 yd.
Its compact, optimized design ensures crystal-clear imaging and excellent shock resistance, while the integrated ballistic calculator delivers instant data for faster, more precise shots.
STAY CLEAR IN TOUGH ENVIRONMENT
Equipped with thermal sensors boasting a NETD < 20mK, the LEAP L3R/L6R detects even the slightest temperature differences — delivering reliable imaging in rain, snow, or high humidity. Paired with an F0.9 lens that increases light intake by 20% compared to F1.0, it enhances brightness and detail in low-light conditions.
CONTINUOUS OPTICAL ZOOM
Enjoy smooth, crystal-clear magnification — no pixelation, no lag.
The LEAP L3R/L6R features an AMOLED display for vivid, high-contrast visuals, and a fine 5.6 μm pixel size keeps images sharp and detailed, even at 3× optical zoom.
No blur. No pixelation. Just a clear shot.
ZOOM IN DIGITALLY — WITHOUT LOSING PIXELS
The LEAP L3R/L6R features enhanced RET technology, which doubles and simulates pixels, ensuring a clearer image even after using digital zoom.
WIDER EYE BOX
The LEAP L3R/L6R features a redesigned eyepiece with a larger exit pupil and extended eye relief. This reduces distortion, improves comfort, and expands the forgiving eye box by 30%, letting you see a full, sharp image without perfect alignment.
Fast shoulder, quick shift — your target stays in sight.
INTUITIVE CONTROLS, PERFECTLY IN HAND
Built for real-world use, the LEAP L3R/L6R includes three large knobs and two oversized buttons for quick, intuitive adjustments — even in the dark or with gloves on.
Smooth zeroing with no need to reverse direction. Just turn and go.
| Model | L3R | |
| Sensor Specifications | Type | VOx Uncooled |
| Resolution, pixels | 384×288 | |
| Pixel pitch, μm | 12 | |
| NETD, mK | <20 | |
| Frame Rate, Hz | 50 | |
| Optical Specifications | Objective Lens，mm | 35 |
| Optic Zoom, x | 3.2 to 9.6 | |
| Field of View (H×V) | 7.5×4.2° | |
| Digital Zoom, x | 1 to 4 | |
| Eye Relief, mm | 50 | |
| Diopter Adjustment, D | -5 to +5 | |
| Detection Range, m/yd | 1800/1969 | |
| Display Specifications | Type | AMOLED |
| Resolution, pixels | 1920×1080 | |
| Laser Rangefinding | Measurement Range, m/yd | 1200/1312 |
| Measurement Accuracy, m/yd | ±1/±1.09 | |
| Video Recorder | Video / Photo Resolution, pixel | 1280×720 |
| Video / Photo Format | .mp4 / .jpg | |
| Built-in Memory, GB | 32 | |
| Physical Specifications | Degree of Protection, IP code | IP67 |
| Operating Temperature Range, °F | -4 to+122 | |
| Weight, lb | 2.4 | |
| Dimensions, inch | 14.2×3.5×3 | |
| Connections and Compatibilities | Battery Type | 18650 |
| Operating Time on Battery Pack (at t=72°F), h | 4 | |
| External Power Supply, V | 5V (Type C USB) | |
| Max Recoil Power on Rifled Weapon (Eo), g/Joules | 1000g/6000Joules | |
| Compatible Mounts | 30mm rings | |
