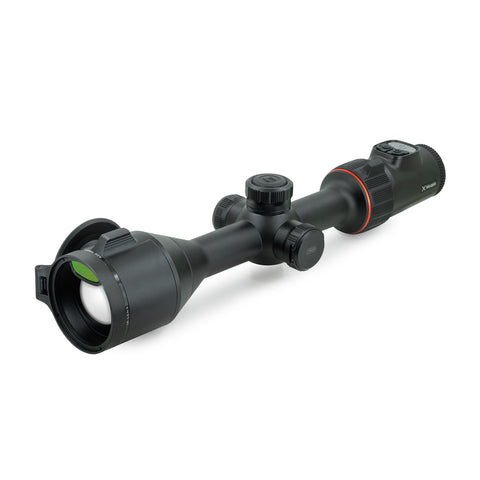

Nocpix Ace H50R Thermal Riflescope

These scopes are the new standard for thermal scopes. The new technology they bring to the industry is a laser rangefinder that is integrated into the front lens of the thermal and not a big and bulky addition to the scope. This scope boasts an industry leading 15 mK Net ID which means that you'll be able to more easily identify animals in adverse weather conditions than with all other scopes on the market. It has a ballistic calculator for those 300 yard + shots and uses rechargeable 18650 batteries. This scope has all of the features that a night hunter can ask for!

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

• Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
• Charge through the unit with a unique lock-out USB-C port design.

• Optics

  Objective Focal Length

  50mm

  Detection Range

  2850 Yards

  Digital Magnification

  8X

  Optical Magnification

  3X

  Objective Lens Material

  Germanium

  Horizontal Angular Field of View

  8.8°

  Vertical Angular Field of View

  7.7°

  Objective Diameter

  50mm

  Objective F#

  0.9

  Focusing Mechanism

  Manual Focus

  Eye Relief

  50mm

  Diopter Range

  -5 to +5

  Display Type

  AMOLED

  Display Resolution

  2560×2560

• Features & Performance

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Rangefinder

  Integrated 1300 yd LRF

  Picture-in-Picture

  Yes

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Connector Type

  USB-C

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

  Storage Capacity

  64GB

  Power Source

  USB-C External, 18650 Battery, Built-In Battery Pack

  Run Time

  7+

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  External Power Source

  USB-C

  Country of Manufacture

  China

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Physical

  Length

  14.37

  Width

  3.54

  Height

  2.68

  Weight

  39.5 oz

  Housing Material

  T-6063 Aluminum

• Sensor Specifications

  Device Technology

  Thermal Imaging

  Sensor Type

  Nocpix 640

  Sensor Resolution

  640×512

  Sensor Pixel Size

  12μm

  Sensor Frame Rate

  60hz

  Thermal Sensitivity

  <15mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic
